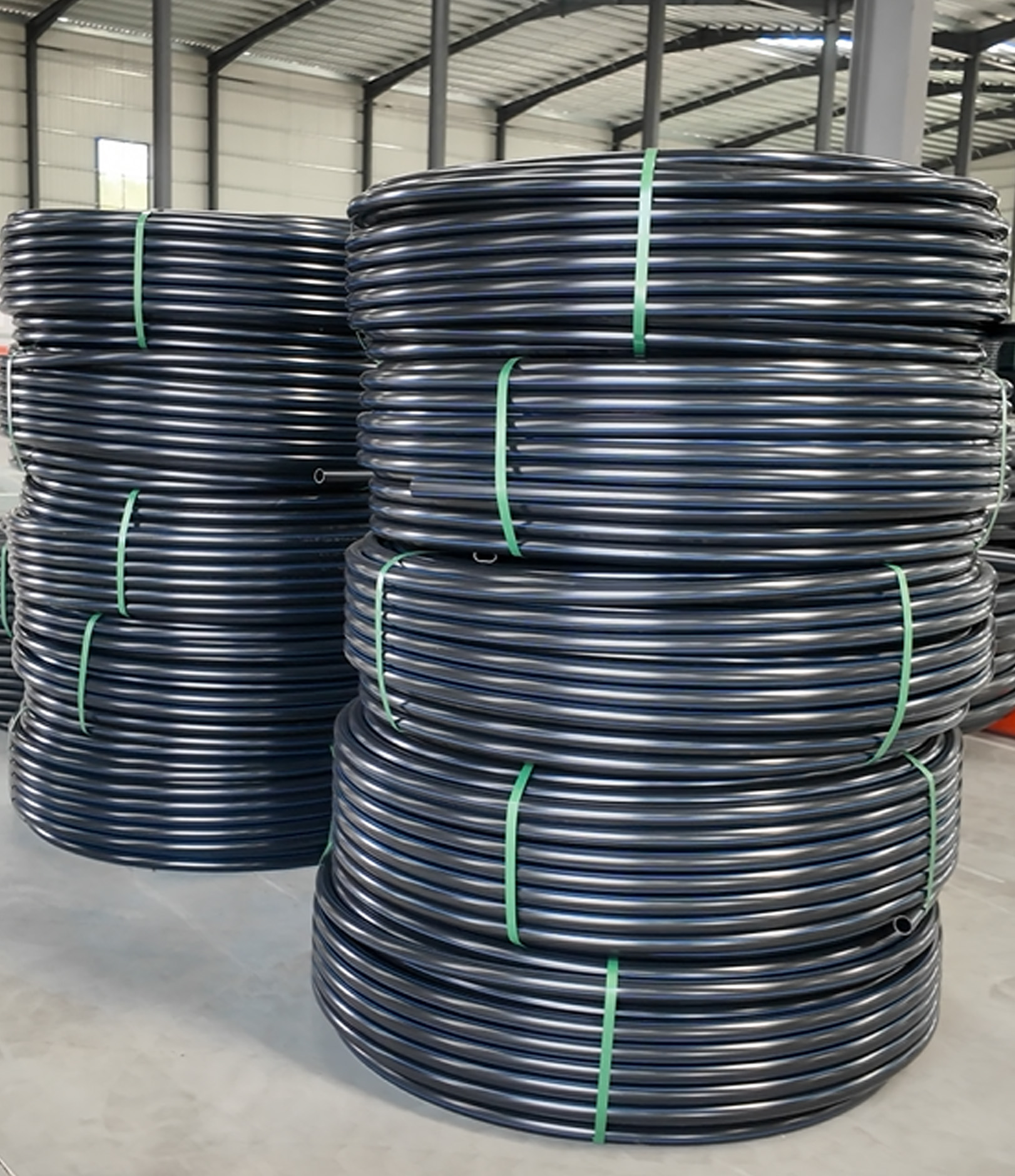

HDPE silicon core pipe is a specialized protective sleeve for optical cables, made using a three-layer co extrusion composite process. It is composed of a high-density polyethylene outer layer and a silicone lubricant inner layer. The inner and outer layers are synchronously extruded and tightly integrated, never falling off. The product complies with the national standard GB/T 24456-2009, with a black base and colored identification strips. The coil form can reach a single length of 3000 meters and is suitable for long-distance continuous laying.

The core performance of the product is excellent, with a low friction coefficient of 0.08-0.15 for the silicone lubricating layer on the inner wall. Combined with air blowing cable technology, it can achieve a single cable penetration of 1000-2000 meters, greatly improving construction efficiency; The pipe body has good toughness, and the bending radius is only 10 times of the outer diameter. It is suitable for laying in complex terrain, and is acid and alkali resistant, waterproof and anti-aging. The operating temperature range is -30°C to 80°C, stable and suitable for the whole environment.

As a specialized pipe for communication networks, it is widely used in operator trunk fiber optic cable projects, 5G communication infrastructure construction, and is also suitable for communication networks along highways, railway communication systems, and other transportation routes. It is the preferred supporting pipe for various types of communication fiber optic cable laying.

• The inner wall has its own solid silicon core layer with extremely low friction coefficient.

  The inner wall is permanently lubricated with a silicon core layer, and the friction coefficient of the optical cable is small. It can be blown through the cable for a long distance, and the construction efficiency is greatly improved;

  Comply with GB/T 24456, ASTM D3350, DIN 8074

• High toughness, impact resistance, drag resistance and scratch resistance


  Made of high-density polyethylene, elongation at break ≥800%, resistant to gravel friction and back-drag force, suitable for trenchless and directional drilling construction;

  Complies with EN 1046, ISO 13479

• Compression resistant and external pressure resistant, no deformation during deep burial laying

  The ring stiffness is stable, resistant to soil extrusion, ground load, and backfill pressure, and is suitable for highway, high-speed rail, and municipal deep burial environments;

  Comply with ISO 9969, GB/T 19472

• Acid and alkali resistant, corrosion resistant, long-term underground stability

  Resistant to soil salinity, groundwater, and microbial corrosion, does not scale or age, and is suitable for long-term use in complex geology;

  Complies with ISO 4433, EN 12573, DIN 50929

• Reliable sealing connection, excellent waterproof and moisture-proof performance

  Special rubber sealing ring socket connection, the interface is tight and waterproof, effectively blocking sediment and groundwater from entering the pipe;

  Complies with EN 12814, DIN 16928

• Excellent flexibility, can be bent and laid according to the terrain

  The bending radius is small, which can adapt to undulating terrain and curved laying, reduce the number of joints and reduce the risk of leakage;

  Compliant with ISO 4427

• Insulation is anti-aging, communication protection is safe and stable


  Excellent insulation performance, strong UV resistance and weather resistance, suitable for a wide temperature range of ‑40°C to 60°C, and adaptable to the complex climate of the north and south;

  Comply with ASTM F714, GB/T 18252

• Air-blown cable threading has strong adaptability and is suitable for long-distance communication projects

  Specially designed for air-blowing optical cable laying, supporting the laying of long-distance communication pipe networks on highways, railways, municipalities, and mountainous areas;

• Light weight, convenient and efficient construction

  It is light in weight, can be transported in coils, reduces joints, and is suitable for direct burial, pipe drainage, and trenchless directional drilling construction to shorten the construction period;

  Comply with GB 50268, ISO 10460

• Long service life and low comprehensive operation and maintenance costs

  The service life under buried conditions is ≥50 years, and it requires no anti-corrosion maintenance. It is widely used in 5G communications, radio and television, and power optical cable protection;

  Comply with GB 50235, AWWA C906
